Inline Multi Blade Rigid PCB Depanelizer Machine

Name: Inline Multi Blade Rigid PCB Depanelizer Machine
Brand: Winsmart
Price: 1 USD

Brand Name : Winsmart

Model Number : SMTID3

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD1-10000/set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets per month

Delivery Time : 2-5 days

Packaging Details : Plywood case

PCB Thickness : 0.8-1.2mm

PCB Material : FR4 & MCPCB

Voltage : 220V/110V

Warranty : 1 year

Full Automatic : Yes

Name : Multi blade pcb depanelizer

Contact Now

Inline Multi Blade PCB Depanelizer For Rigid PCB Boards Separation

Multi Blade PCB Depanelizer Features:

Workable for “#”shape depaneling.

Horizontal and vertical depaneling is optional.

Blade set can be quickly changed.

Could connect PCB loader and PCB unloader to realize fully automated production to save labor.

Simple operation, workers can operate it after training.

Unique new blade design, lifetime should be increased by 1.5-2 times.

Safety: Sensor is used to ensure safe production.

Multi Blade PCB Depanelizer Specification:

Blade dimension	Circular blade:¢80 ¢60mm Linear Blade: 356×43.5×6mm
PCB width	300mm(could be customized)
Driven mode	Stepping / Servo motor(optional)
V-cut angel	>40°
Cutting speed	300-500/s
Blade material	High speed steel
Air pressure	0.5-0.8Mpa
Voltage	220/110V
Dimension	1250(1560)mm×800mm×1295mm
Packaging weight	300kgs

Operation Process:

Inline Multi Blade Rigid PCB Depanelizer Machine

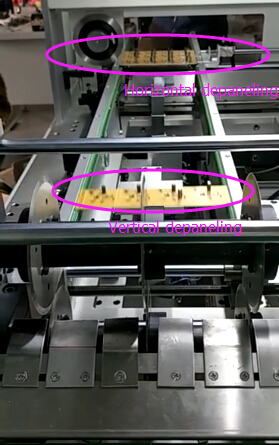

Machine Horizontal and Vertical Cutting:

Inline Multi Blade Rigid PCB Depanelizer Machine
